WebRTC

Demystifying WebRTC

A technical talk explaining why WebRTC exists and what protocols make it work.

Gaurav Agarwal
CoderMana

Me

Gaurav Agarwal

Software Engineer & Product Developer

Director of Engineering & Founder @ https://codermana.com

ex-Tarka Labs, ex-BrowserStack, ex-ThoughtWorks

CoderMana

Agenda

  1. Why WebRTC exists
  2. The RFCs that define it
  3. The lifecycle of a connection
  4. Code walkthrough — canonical API, then a real POC
  5. Media & data channels
  6. Connectivity: STUN, TURN, ICE
  7. Security: secure by default
  8. Architecture & trade-offs

The value is the model. The APIs make sense once the model does.

CoderMana
Start Here

Why WebRTC

CoderMana

HTTP and WebSockets are enough for data, but not enough by themselves for good real-time media like voice, video, or screen sharing.

CoderMana
HTTP

Why HTTP is not enough

CoderMana

HTTP is request/response.

CoderMana

That means:

  • client asks, server responds
  • each exchange is discrete
CoderMana
  • it is not built for a continuous low-latency stream
  • retries and buffering are usually favored over timeliness
CoderMana

For media, late data is often useless.

CoderMana

A video frame that arrives 2 seconds late is worse than a dropped frame.

CoderMana

HTTP is generally optimized for correctness and delivery, not “play it now or skip it.”

CoderMana
WebSockets

Why WebSockets are still not enough

CoderMana

WebSockets improve a lot over HTTP because they give you a persistent full-duplex connection.

CoderMana

That helps for signaling and live app events.

CoderMana

But raw WebSockets still miss several things real-time media needs.

CoderMana

WebSockets miss media needs

Transport Timing Session
They usually run over TCP. TCP guarantees ordered delivery. Real-time media often prefers UDP-like behavior for actual media transport. No built-in jitter handling or timing model. Media packets do not just need to arrive. They need to arrive with usable timing. No standard support for audio/video codecs and negotiation. WebSockets are just a transport pipe. They do not define a media session model.
CoderMana

More gaps

Connectivity Congestion Devices
No NAT traversal solution. In real apps, two peers are often behind routers, firewalls, CGNAT, mobile networks, and enterprise networks. No built-in congestion control tuned for live media. No standard echo cancellation, A/V sync, device integration, etc.
CoderMana
Media Transport

What real-time media usually needs instead

CoderMana

Real-time media needs a media transport system.

CoderMana

WebRTC adds the missing pieces:

  • UDP-first transport
  • RTP/RTCP style media handling
  • jitter buffers
  • packet loss recovery strategies
  • congestion control
  • codec negotiation
  • NAT traversal via ICE/STUN/TURN
  • encryption
  • A/V synchronization
  • browser and device support
CoderMana

Where each tool fits

HTTP WebSockets WebRTC
HTTP is good for setup, APIs, downloading, buffered streaming. WebSockets are good for signaling, chat, presence, control messages. WebRTC is good for live audio/video/screen media.
CoderMana

Not just video calls

Gaming File & data Edge & IoT
Low-latency state, voice, and inputs between players — often peer-to-peer, no game server in the path. Direct browser-to-browser transfer over RTCDataChannel, no upload-then-download round trip. Camera feeds, robotics, and cloud rendering streamed straight to a browser with sub-second latency.
CoderMana
Standards

The RFCs

CoderMana

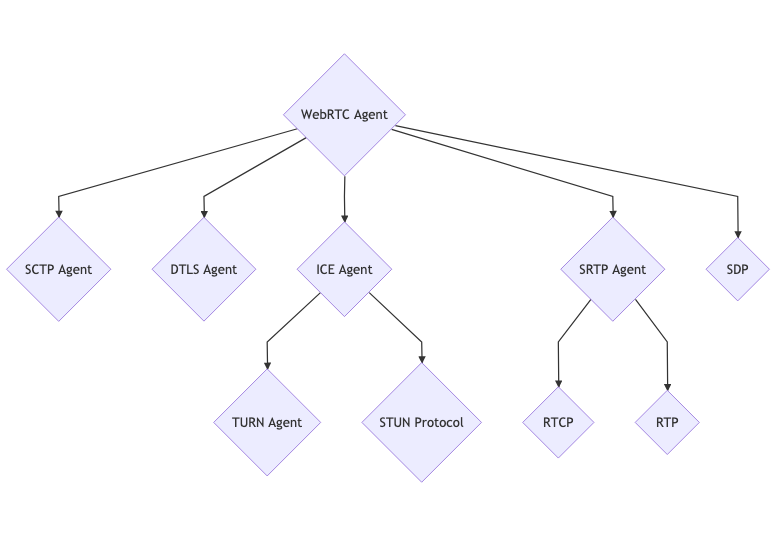

WebRTC is a suite, not one spec

WebRTC RFCs

https://webrtcforthecurious.com/docs/01-what-why-and-how/

CoderMana

The RFC map

The blueprint Connectivity Security
SDP — session description (4566) · Offer/Answer (3264) · Overview (8825) ICE (8445) · STUN (8489) · TURN (8656) DTLS (6347) · SRTP (3711)
CoderMana
Blueprint

RFC 4566 — SDP

Session Description Protocol. A plain-text format describing a media session: media types, codecs, transport addresses, and parameters.

  • It is what the offer and the answer actually contain
  • Describes capabilities — it does not move media itself

https://datatracker.ietf.org/doc/html/rfc4566

CoderMana
Blueprint

RFC 3264 — Offer / Answer

The negotiation model. One peer sends an SDP offer; the other replies with a compatible answer.

  • Converges on a shared set of codecs and parameters
  • WebRTC drives it through setLocal / setRemoteDescription

https://datatracker.ietf.org/doc/html/rfc3264

CoderMana
Blueprint

RFC 8825 — WebRTC Overview

The map of the suite. Names the protocols WebRTC builds on and how they fit together.

  • Your entry point into the whole spec family
  • Points out to RTP, ICE, DTLS, SCTP, SDP, and more

https://datatracker.ietf.org/doc/html/rfc8825

CoderMana
Connectivity

RFC 8445 — ICE

Interactive Connectivity Establishment. Gathers candidate addresses and probes pairs to find a path that works.

  • Combines host, STUN-reflexive, and TURN-relay candidates
  • Picks the best pair; supports incremental trickle ICE

https://datatracker.ietf.org/doc/html/rfc8445

CoderMana
Connectivity

RFC 8489 — STUN

Session Traversal Utilities for NAT. Lets a peer discover its public, NAT-mapped address.

  • Cheap and effectively stateless
  • Answers "what address can others actually reach me on?"

https://datatracker.ietf.org/doc/html/rfc8489

CoderMana
Connectivity

RFC 8656 — TURN

Traversal Using Relays around NAT. A relay that forwards media when no direct path can be found.

  • Works even through symmetric NATs and strict firewalls
  • Costs server bandwidth — the fallback, never the default

https://datatracker.ietf.org/doc/html/rfc8656

CoderMana
Security

RFC 6347 — DTLS 1.2

Datagram TLS. A TLS handshake over UDP that agrees on keys before any media flows.

  • The certificate fingerprint is carried inside the SDP
  • Bootstraps the keys that SRTP then uses

https://datatracker.ietf.org/doc/html/rfc6347

CoderMana
Security

RFC 3711 — SRTP

Secure RTP. Encrypts and authenticates every media packet.

  • Keys come straight from the DTLS handshake (DTLS-SRTP)
  • Mandatory — there is no unencrypted media path

https://datatracker.ietf.org/doc/html/rfc3711

CoderMana
Lifecycle

How a connection comes up

CoderMana

The lifecycle

  1. Signaling — swap setup metadata over your own channel
  2. Offer / Answer — exchange SDP: codecs, tracks, parameters
  3. ICE — gather candidates, probe paths, pick the best
  4. DTLS handshake — agree on keys
  5. Connected — media (SRTP) and data flow directly
CoderMana

WebRTC defines everything except how two peers first find each other. Signaling is yours to build.

CoderMana
Code

Walkthrough

CoderMana

The canonical browser ↔ browser flow first.

Then a real one I built.

CoderMana

1. Create the connection

// 1. Create the connection. STUN lets each peer learn its public address.
const pc = new RTCPeerConnection({
  iceServers: [{ urls: "stun:stun.l.google.com:19302" }],
});

STUN servers let each peer discover its own public address.

CoderMana

2. Add media, receive media

// 2. Add local media, and render whatever the remote peer sends back.
const media = await navigator.mediaDevices.getUserMedia({
  audio: true,
  video: true,
});
media.getTracks().forEach((track) => pc.addTrack(track, media));

pc.ontrack = ({ streams: [remote] }) => {
  remoteVideo.srcObject = remote;
};
CoderMana

3a. Caller: make an offer

// 5a. Caller: describe what we can send/receive, then ship the offer.
const offer = await pc.createOffer();
await pc.setLocalDescription(offer);
signaling.send({ sdp: offer });
CoderMana

3b. Callee: answer it

// 5b. Callee: accept the offer, then answer with our own description.
await pc.setRemoteDescription(remoteOffer);
const answer = await pc.createAnswer();
await pc.setLocalDescription(answer);
signaling.send({ sdp: answer });
CoderMana

4. Trickle ICE candidates

// 4. Trickle each ICE candidate to the peer as soon as it is discovered,
//    and feed in the ones they send us. No waiting for the full list.
pc.onicecandidate = ({ candidate }) => {
  if (candidate) signaling.send({ candidate });
};
signaling.on("candidate", (candidate) => pc.addIceCandidate(candidate));

Send candidates as they arrive instead of waiting for the full list — the connection comes up sooner.

CoderMana
Demo

Mirrorpad

A real POC: a macOS screen, streamed to the browser over WebRTC.

CoderMana

What Mirrorpad does

  • Server (Rust) captures the screen, encodes H.264, and publishes it
  • Browser is receive-only — it just renders the track
  • Signaling is a single HTTP POST /session: offer in, answer out
  • Built on the webrtc crate (a Rust port of pion/webrtc) + axum

One-way and same-network on purpose — small enough to read end to end.

CoderMana

Browser side: connect()

async function connect() {
  const pc = new RTCPeerConnection({ iceServers: [] });
  pc.addTransceiver("video", { direction: "recvonly" }); // receive-only
  pc.ontrack = ({ streams: [stream] }) => { viewer.srcObject = stream; };

  // Create our offer and gather ICE candidates before sending.
  await pc.setLocalDescription(await pc.createOffer());
  await waitForIceGatheringComplete(pc);

  // Signaling = one HTTP POST: offer up, answer back.
  const res = await fetch("/session", {
    method: "POST",
    body: JSON.stringify({ sdp: pc.localDescription.sdp }),
  });
  const answer = await res.json();
  await pc.setRemoteDescription({ type: "answer", sdp: answer.sdp });
}
CoderMana

Server side: open the connection

async fn build_peer_connection() -> Result<Arc<RTCPeerConnection>> {
    let mut media_engine = MediaEngine::default();
    media_engine.register_default_codecs()?;
    let registry =
        register_default_interceptors(Registry::new(), &mut media_engine)?;
    let api = APIBuilder::new()
        .with_media_engine(media_engine)
        .with_interceptor_registry(registry)
        .build();

    // No STUN/TURN: serves same-network viewers only.
    let config = RTCConfiguration { ice_servers: vec![], ..Default::default() };
    Ok(Arc::new(api.new_peer_connection(config).await?))
}
CoderMana

Declare the codec

// We publish a single H.264 video track.
fn video_codec() -> RTCRtpCodecCapability {
    RTCRtpCodecCapability {
        mime_type: MIME_TYPE_H264.to_owned(),
        clock_rate: 90_000,
        sdp_fmtp_line: "level-asymmetry-allowed=1;packetization-mode=1;\
                        profile-level-id=42e01f"
            .to_string(),
        ..Default::default()
    }
}
CoderMana

Negotiate: offer in, answer out

async fn accept_offer(self, offer_sdp: String) -> Result<String> {
    // 1. Publish our outbound media track.
    self.pc.add_track(self.video_track.clone()).await?;
    // 2. Apply the browser's offer.
    let offer = RTCSessionDescription::offer(offer_sdp)?;
    self.pc.set_remote_description(offer).await?;
    // 3. Build our answer.
    let answer = self.pc.create_answer(None).await?;
    // 4. Set it locally, then wait for ICE gathering.
    let mut gather_done = self.pc.gathering_complete_promise().await;
    self.pc.set_local_description(answer).await?;
    let _ = gather_done.recv().await;
    // 5. Return the gathered answer SDP.
    let local = self.pc.local_description().await.ok_or("no local desc")?;
    self.spawn_video_forwarder();
    Ok(local.sdp)
}
CoderMana

The entire signaling surface

// POST an SDP offer, get an SDP answer. That is the whole protocol.
async fn create_session_handler(
    State(state): State<AppState>,
    Json(offer): Json<SessionOffer>,
) -> Result<Json<SessionAnswer>, AppError> {
    // Subscribe to the live H.264 stream, then negotiate around it.
    let (encoded_rx, first_frame) = state.pipeline.subscribe();
    let sdp = accept_offer(encoded_rx, first_frame, offer.sdp)
        .await
        .map_err(AppError::internal)?;
    Ok(Json(SessionAnswer { sdp }))
}
CoderMana

What this POC does — and doesn't

It is a faithful, minimal publisher: real SDP, real ICE, real DTLS/SRTP.

Caveat: it is one-way (server → browser), uses HTTP not WebSocket signaling, sends a media track not a data channel, and configures no STUN/TURN — so it only reaches viewers on the same network.

CoderMana
Media & Data

Two ways to move bytes

CoderMana

MediaStream

  • A MediaStream is a bundle of tracks (audio, video)
  • Sources produce frames: a camera, a mic, a screen, a canvas
  • Sinks consume them: a <video> element, a recorder, a peer
  • Tracks are negotiated, encoded, and synced for you
CoderMana

RTCDataChannel: pick your guarantees

// 3. An optional data channel — you choose the delivery guarantees.
const chat = pc.createDataChannel("chat"); // reliable + ordered (default)
const moves = pc.createDataChannel("moves", {
  ordered: false,
  maxRetransmits: 0, // fire-and-forget, like raw UDP
});
pc.ondatachannel = ({ channel }) => {
  channel.onmessage = (e) => console.log(channel.label, e.data);
};
CoderMana

Data channel delivery modes

Reliable + ordered Unordered Unreliable
Default. Like TCP — every message arrives, in order. Good for chat and state sync. ordered: false. Arrives, but maybe out of order. Lower head-of-line blocking. maxRetransmits: 0 or a deadline. Like UDP — drop rather than wait. Good for game inputs.
CoderMana

Media gets congestion control too: WebRTC watches loss and delay, then adapts bitrate and resolution to fit the path.

CoderMana
Connectivity

STUN, TURN, ICE

CoderMana

Two peers behind home routers have no idea what public address the other can be reached at.

CoderMana

Three tools, one job

STUN TURN ICE
"What's my public address?" A peer asks a STUN server and learns its NAT-mapped IP/port. When direct paths all fail, relay through a TURN server. Always works, costs bandwidth. The framework that gathers every candidate and probes pairs to find the best working path.
CoderMana

ICE candidate types

  • host — your local LAN address
  • srflx (server-reflexive) — your public address, via STUN
  • relay — a TURN relay, the last-resort fallback

ICE pairs them up, runs connectivity checks, and promotes the best pair. With trickle ICE, it does this while candidates are still arriving.

CoderMana
Security

Secure by default

CoderMana

There is no unencrypted WebRTC

  • Every connection does a DTLS handshake before any media flows
  • Media is encrypted with SRTP; data channels ride DTLS (over SCTP)
  • The DTLS certificate fingerprint travels inside the SDP — so signaling integrity protects the keys
  • Encryption is mandatory: there is no "off" switch
CoderMana

The encryption stack

DTLS SRTP Fingerprint
Handshake over UDP that agrees on keys (RFC 6347). Encrypts and authenticates each media packet (RFC 3711). The cert hash in the SDP binds the handshake to the peer you negotiated with.
CoderMana
Architecture

Trade-offs at scale

CoderMana

Mesh Architecture (P2P)

  • Every peer connects directly to every other peer.
  • Pros: Simple to build, no server infrastructure required, end-to-end encryption.
  • Cons: Bandwidth and CPU intensive. If there are N participants, each peer sends (N-1) uplink streams and receives (N-1) downlink streams.
  • Does not scale well past a small group (~4-6 peers).
CoderMana

Mesh Architecture (P2P) Diagram

Mermaid Diagram

CoderMana

SFU (Selective Forwarding Unit)

  • A server that receives streams from each peer and selectively forwards them to the others.
  • Each peer sends only one uplink stream (or a few simulcast layers) to the server.
  • The server acts as a smart router, not a media processor.
  • Pros: Highly scalable for bandwidth (reduces uplink drastically).
  • Cons: Requires server infrastructure; clients still have to decode multiple incoming streams.
CoderMana

SFU (Selective Forwarding Unit) Diagram

Mermaid Diagram

CoderMana

MCU (Multipoint Control Unit)

  • A centralized server that receives all streams, decodes them, mixes them into a single composite stream (audio/video), re-encodes, and sends it out.
  • Pros: Extremely low bandwidth and CPU requirement for the client (receives and decodes only 1 stream).
  • Cons: Highly CPU-intensive for the server, introduces latency, and breaks end-to-end encryption.
CoderMana

MCU (Multipoint Control Unit) Diagram

Mermaid Diagram

CoderMana

Mesh vs SFU vs MCU

Mesh SFU MCU
Every peer connects to every other. Simple; uploads explode past ~4 peers. A server forwards each stream selectively. Scales well; clients decode many streams. A server mixes streams into one. Cheapest client, heaviest server, highest latency.
CoderMana

Scaling & debugging

  • Past a handful of participants, move from mesh to an SFU
  • Watch the live state in the browser:
    • chrome://webrtc-internals
    • about:webrtc (Firefox)
  • Inspect candidates, selected pair, bitrate, loss, and jitter in real time
CoderMana

Takeaways

  • WebRTC exists because HTTP/WebSockets can't do real-time media well
  • It's a suite of RFCs — SDP, ICE, STUN/TURN, DTLS, SRTP — not one API
  • The hard parts are connectivity and timing; signaling is yours
  • It is encrypted by default, always
CoderMana

Resources

Code

https://github.com/codermana/presentation-demystifying-webrtc

Slides

https://demystifying-webrtc.slides.algogrit.com

CoderMana

deck:title:start

deck:title:end

snippet: examples/canonical/peer.js#create

snippet: examples/canonical/peer.js#tracks

snippet: examples/canonical/peer.js#offer

snippet: examples/canonical/peer.js#answer

snippet: examples/canonical/peer.js#ice

snippet: examples/poc/browser-client.js#connect

snippet: examples/poc/peer_connection.rs#build

snippet: examples/poc/peer_connection.rs#codec

snippet: examples/poc/peer_connection.rs#accept

snippet: examples/poc/signaling.rs#handler

snippet: examples/canonical/peer.js#datachannel

deck:resources:start

deck:resources:end
